H2024-W Helical Antenna

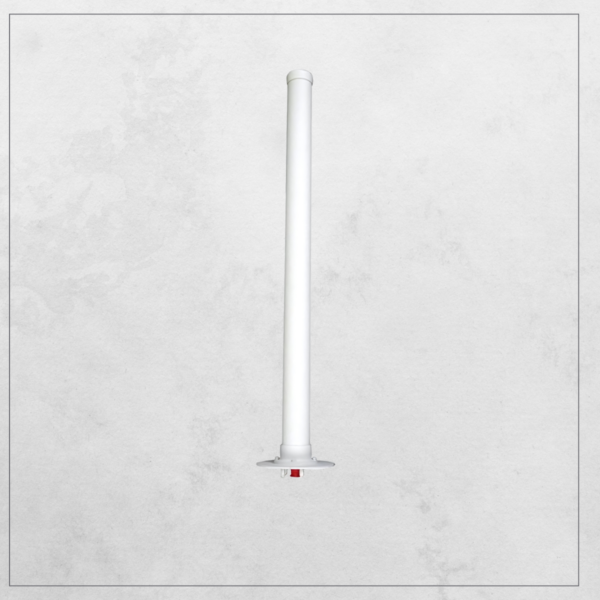

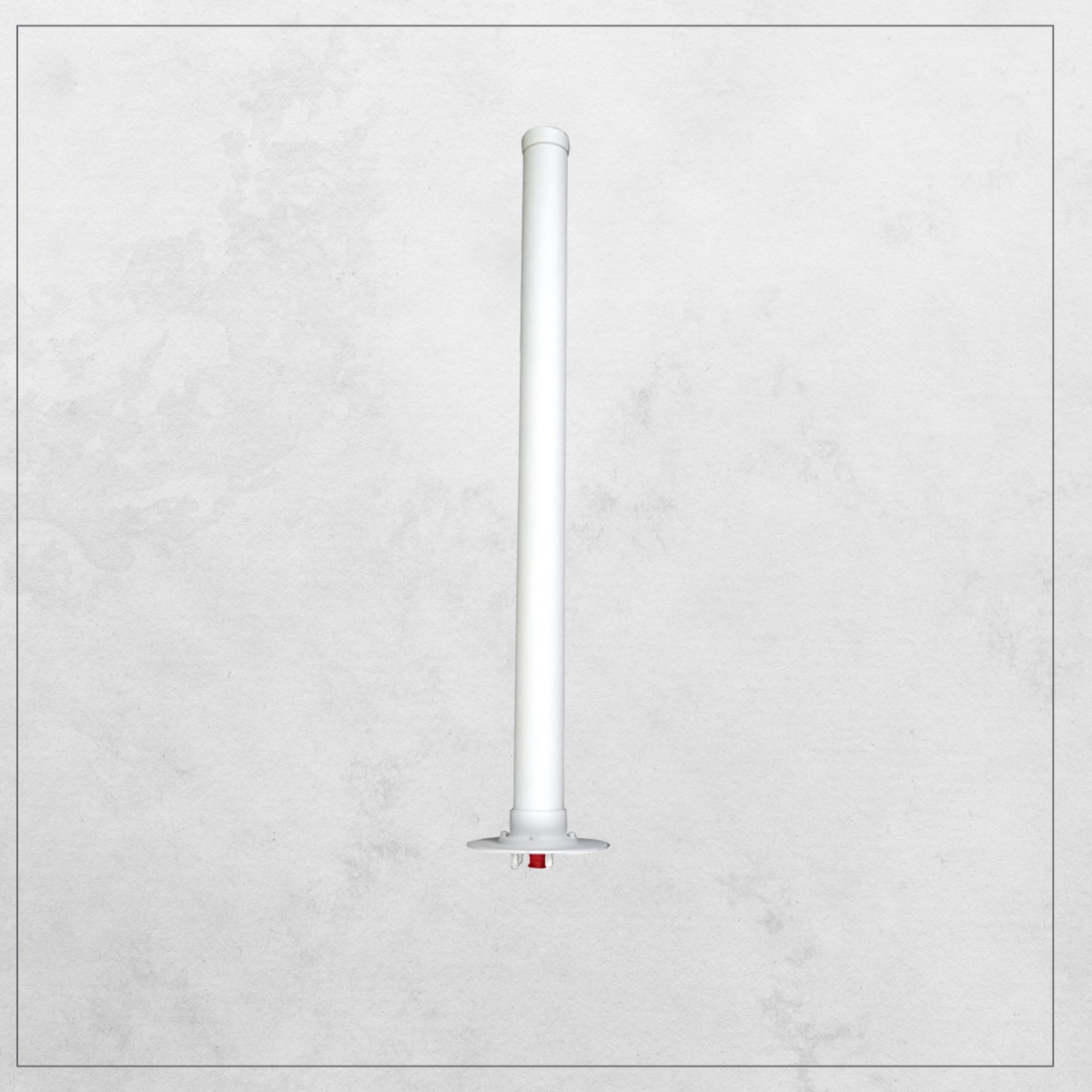

The H2024-W 2.4 GHz High-Gain Helical Antenna (17.4 dBic) delivers extended-range, interference-resistant communication, ensuring secure and reliable connectivity for industrial, military, and wireless network applications.
| GENERAL | |
| Antenna Pattern: | |
| Antenna Type: | |
| Radome Finish: | |
| Radome Material: |
| ELECTRICAL | |
| Frequency (MHz): | |
| Polarization: | |
| HPBW (°): | |
| Impedance (Ohm): | |
| VSWR (Max): | |
| Gain (dBi): | |
| Axial Ratio (dB): | |
| Front/Back Ratio: | |
| Isolation (dB): | |
| Max Input Power (W): | |
| Connector Type: | |
| Number of Connectors: | |
| MECHANICAL | |
| Antenna Length (in): | |
| Top Section Length (in): | |
| Bottom Section Length (in): | |
| Antenna Weight (lbs): | |
| Top Section Weight (lbs): | |
| Bottom Section Weight (lbs): | |
| Number of Elements: | |
| Length of Longest Element (in): | |
| Reflector Dimensions (in): | |
| Radome Diameter (in): | |
| Ground Plane Diameter (in): | |
| Bulkhead Base Diameter (in): | |
| Helical Diameter (in): |
| ENVIROMENTAL | |
| Operating Temperature (F): | |
| Wind Area (ft²): | |
| Wind Area With ½” Ice (ft²): | |
| Wind Load ft-lbs: | |
| Wind Load With ½” Ice ft-lbs: | |
| Thrust No Ice (ice lbs): | |
| Thrust With ½” Ice (ice lbs): | |
| Rated Wind Velocity (mph): | |
| Rated Wind Velocity With ½” Ice (mph): | |
| Bend Moment (ft-lbs): | |
| Survival Rating (mph): | |
| Azimuth (°): | |
| Elevation (°): |
| MOUNTING | |
| Mast OD (in): | |
| Mounting OD (in): | |
| Mount Type: | |
| Mount Height (in): | |
| Mount Weight (lbs): |
All model variants feature identical electrical, mechanical, and environmental specifications. Selection depends on required polarization, color, and optional accessories.
| MODEL VARIANTS | |||
| Model# | Polarization | Color | Accessories |
| BDH2024-W | RHCP or LHCP | Standard White | – |
| BDH2024-ASP | RHCP | Anti-Static Paint White | – |
| BDH2024-ASP-LH | LHCP | Anti-Static Paint White | – |
Description
The H2024-W is a high-performance, high-gain helical antenna, engineered for reliable and interference-resistant communication across the 2.4 GHz frequency band. With a 17.4 dBic gain, this antenna delivers extended range, superior signal strength, and improved penetration, making it ideal for wireless networks, industrial IoT, surveillance, and long-range communication applications.
Its circular polarization enhances signal stability by reducing multipath interference, ensuring consistent performance in challenging RF environments, such as tunnels, urban corridors, industrial automation facilities, and defense operations. Built for rugged durability, the H2024-W provides long-term reliability in harsh conditions, supporting mission-critical applications requiring secure and efficient connectivity.
