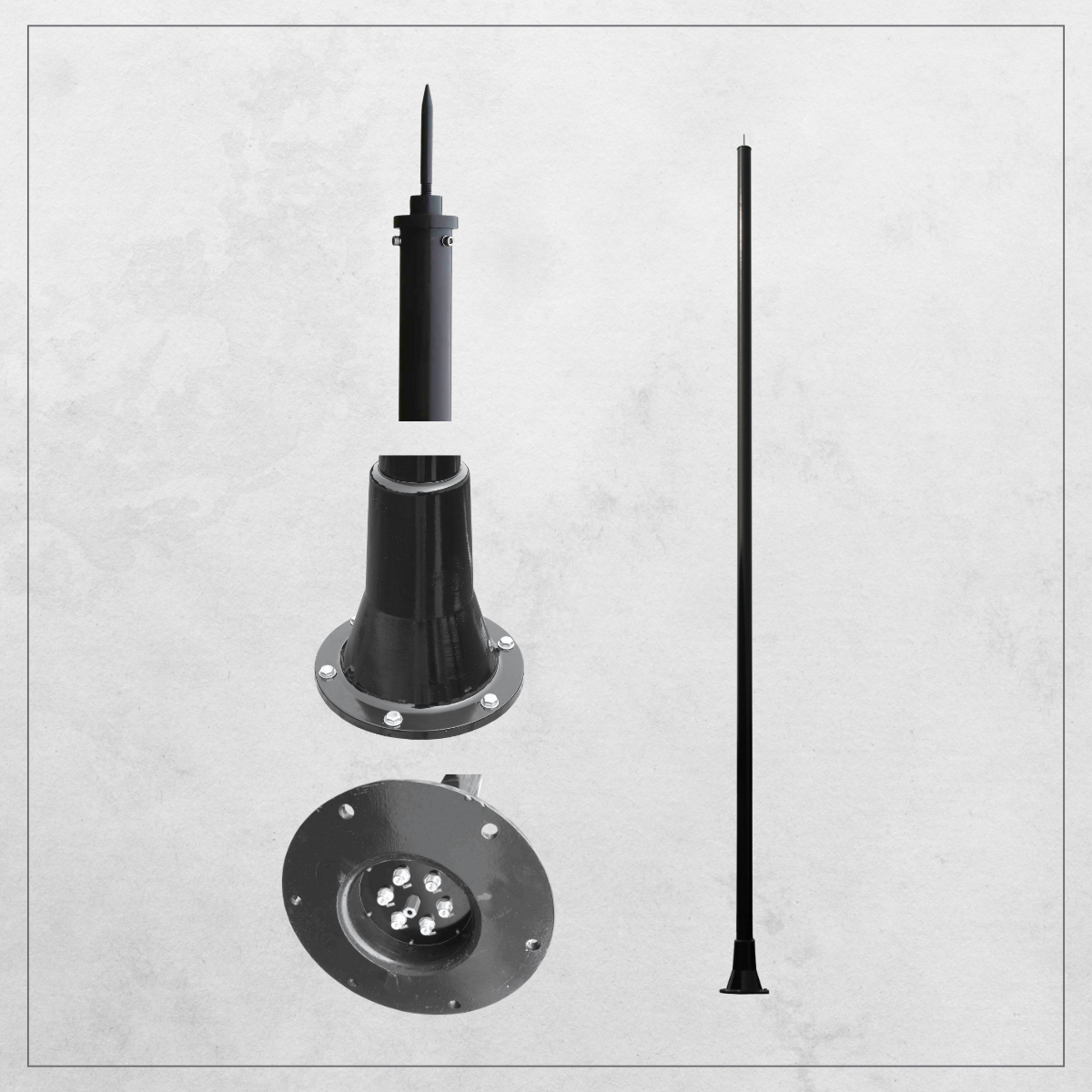

D7061-L Shipboard Antenna
The D7061-L Multi-Dipole Shipboard Omni-Directional Antenna (VHF 115-175 MHz & UHF 225-400 MHz) delivers six independent outputs with high-isolation, 360-degree coverage, ensuring secure and uninterrupted ship-to-ship and ship-to-air communication in naval and defense operations.
| GENERAL | |
| Antenna Pattern: | |
| Antenna Type: | |
| Radome Finish: | |
| Radome Material: |
| ELECTRICAL | |
| Frequency (MHz): | |
| Polarization: | |
| HPBW (°): | |
| Impedance (Ohm): | |
| VSWR (Max): | |
| Gain (dBi): | |
| Axial Ratio (dB): | |
| Front/Back Ratio: | |
| Isolation (dB): | |
| Max Input Power (W): | |
| Connector Type: | |
| Number of Connectors: | |
| MECHANICAL | |
| Antenna Length (in): | |
| Top Section Length (in): | |
| Bottom Section Length (in): | |
| Antenna Weight (lbs): | |
| Top Section Weight (lbs): | |
| Bottom Section Weight (lbs): | |
| Number of Elements: | |
| Length of Longest Element (in): | |
| Reflector Dimensions (in): | |
| Radome Diameter (in): | |
| Ground Plane Diameter (in): | |
| Bulkhead Base Diameter (in): | |
| Helical Diameter (in): |
| ENVIROMENTAL | |
| Operating Temperature (F): | |
| Wind Area (ft²): | |
| Wind Area With ½” Ice (ft²): | |
| Wind Load ft-lbs: | |
| Wind Load With ½” Ice ft-lbs: | |
| Thrust No Ice (ice lbs): | |
| Thrust With ½” Ice (ice lbs): | |
| Rated Wind Velocity (mph): | |
| Rated Wind Velocity With ½” Ice (mph): | |
| Bend Moment (ft-lbs): | |
| Survival Rating (mph): | |
| Azimuth (°): | |
| Elevation (°): |
| MOUNTING | |
| Mast OD (in): | |
| Mounting OD (in): | |
| Mount Type: | |
| Mount Height (in): | |
| Mount Weight (lbs): |
All model variants feature identical electrical, mechanical, and environmental specifications. Selection depends on required polarization, color, and optional accessories.
| MODEL VARIANTS | |||
| Model# | Polarization | Color | Accessories |
| BDH2024-W | RHCP or LHCP | Standard White | – |
| BDH2024-ASP | RHCP | Anti-Static Paint White | – |
| BDH2024-ASP-LH | LHCP | Anti-Static Paint White | – |
Description
The D7061-L is a rugged, high-performance shipboard antenna, designed for mission-critical naval communications, ship-to-air, and ship-to-ship operations. Featuring a six-output configuration, it integrates three VHF dipoles (115-175 MHz) and three UHF dipoles (225-400 MHz) within a single enclosure, enabling simultaneous multi-frequency operation with high isolation and minimal interference.
Engineered for harsh maritime environments, the D7061-L provides 360-degree omni-directional coverage, ensuring uninterrupted, secure connectivity for vessels, aircraft, and coastal command centers. Its multiple dipole design enhances signal clarity, operational flexibility, and redundancy, making it a critical asset for naval fleets, coast guard units, and defense agencies requiring robust and continuous communication at sea.
Built to withstand saltwater exposure, high winds, and extreme weather conditions, the D7061-L meets military-grade durability standards, ensuring long-term reliability for shipboard communication networks
