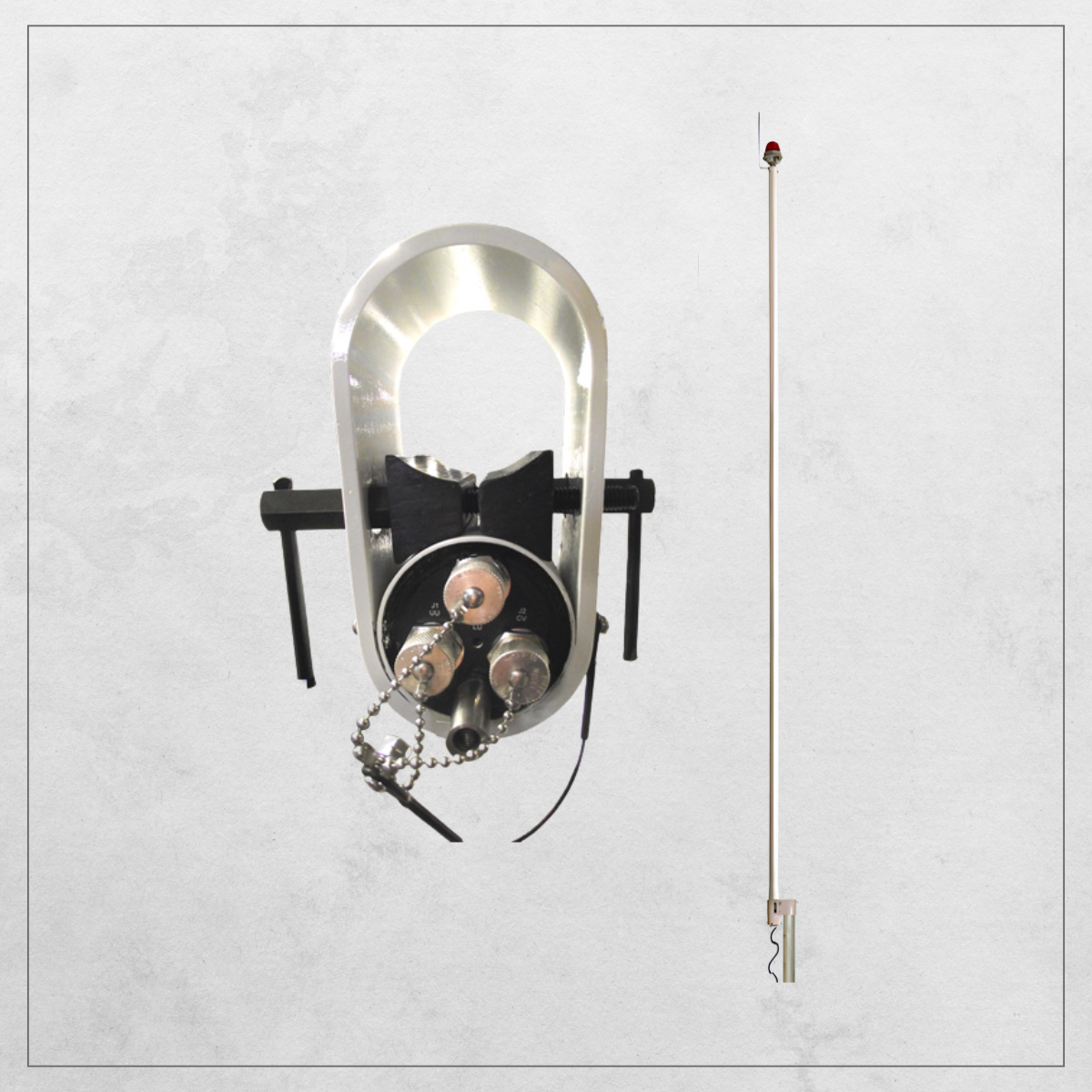

D2296-OL-LED-EU Omni Directional Antenna With EU Compliant Obstruction Light
The D2296-OL-LED-EU Multi-Band Omni-Directional Dipole Antenna (VHF 116-150 MHz & UHF 225-400 MHz) features an EU-compliant obstruction light and three independent outputs, providing secure, interference-free multi-frequency ground-to-air communication for military, defense, and air traffic control applications.
| GENERAL | |
| Antenna Pattern: | |
| Antenna Type: | |
| Radome Finish: | |
| Radome Material: |
| ELECTRICAL | |
| Frequency (MHz): | |
| Polarization: | |
| HPBW (°): | |
| Impedance (Ohm): | |
| VSWR (Max): | |
| Gain (dBi): | |
| Axial Ratio (dB): | |
| Front/Back Ratio: | |
| Isolation (dB): | |
| Max Input Power (W): | |
| Connector Type: | |
| Number of Connectors: | |
| MECHANICAL | |
| Antenna Length (in): | |
| Top Section Length (in): | |
| Bottom Section Length (in): | |
| Antenna Weight (lbs): | |
| Top Section Weight (lbs): | |
| Bottom Section Weight (lbs): | |
| Number of Elements: | |
| Length of Longest Element (in): | |
| Reflector Dimensions (in): | |
| Radome Diameter (in): | |
| Ground Plane Diameter (in): | |
| Bulkhead Base Diameter (in): | |
| Helical Diameter (in): |
| ENVIROMENTAL | |
| Operating Temperature (F): | |
| Wind Area (ft²): | |
| Wind Area With ½” Ice (ft²): | |
| Wind Load ft-lbs: | |
| Wind Load With ½” Ice ft-lbs: | |
| Thrust No Ice (ice lbs): | |
| Thrust With ½” Ice (ice lbs): | |
| Rated Wind Velocity (mph): | |
| Rated Wind Velocity With ½” Ice (mph): | |
| Bend Moment (ft-lbs): | |
| Survival Rating (mph): | |
| Azimuth (°): | |
| Elevation (°): |
| MOUNTING | |
| Mast OD (in): | |
| Mounting OD (in): | |
| Mount Type: | |
| Mount Height (in): | |
| Mount Weight (lbs): |
All model variants feature identical electrical, mechanical, and environmental specifications. Selection depends on required polarization, color, and optional accessories.
| MODEL VARIANTS | |||
| Model# | Polarization | Color | Accessories |
| BDH2024-W | RHCP or LHCP | Standard White | – |
| BDH2024-ASP | RHCP | Anti-Static Paint White | – |
| BDH2024-ASP-LH | LHCP | Anti-Static Paint White | – |
Description
The D2296-OL-LED-EU is a rugged, military-grade omni-directional dipole antenna, designed for mission-critical ground-to-air communications in military, defense, and FAA-regulated air traffic control operations. Featuring an integrated EU-compliant obstruction light, it enhances airfield and operational safety, ensuring visibility in low-light and restricted visibility conditions while meeting European aviation and safety regulations.
Engineered for multi-band performance, the D2296-OL-LED-EU operates across two VHF outputs (116-150 MHz) and one UHF output (225-400 MHz), allowing for simultaneous, interference-free multi-frequency connectivity. With 360-degree omnidirectional coverage, it ensures secure, long-range ground-to-air communication, optimizing signal clarity and efficiency for tactical aviation, military bases, and defense networks.
Built to military specifications, the D2296-OL-LED-EU is designed to withstand harsh environmental conditions, ensuring long-term durability and reliable performance in critical defense and aviation applications worldwide.
