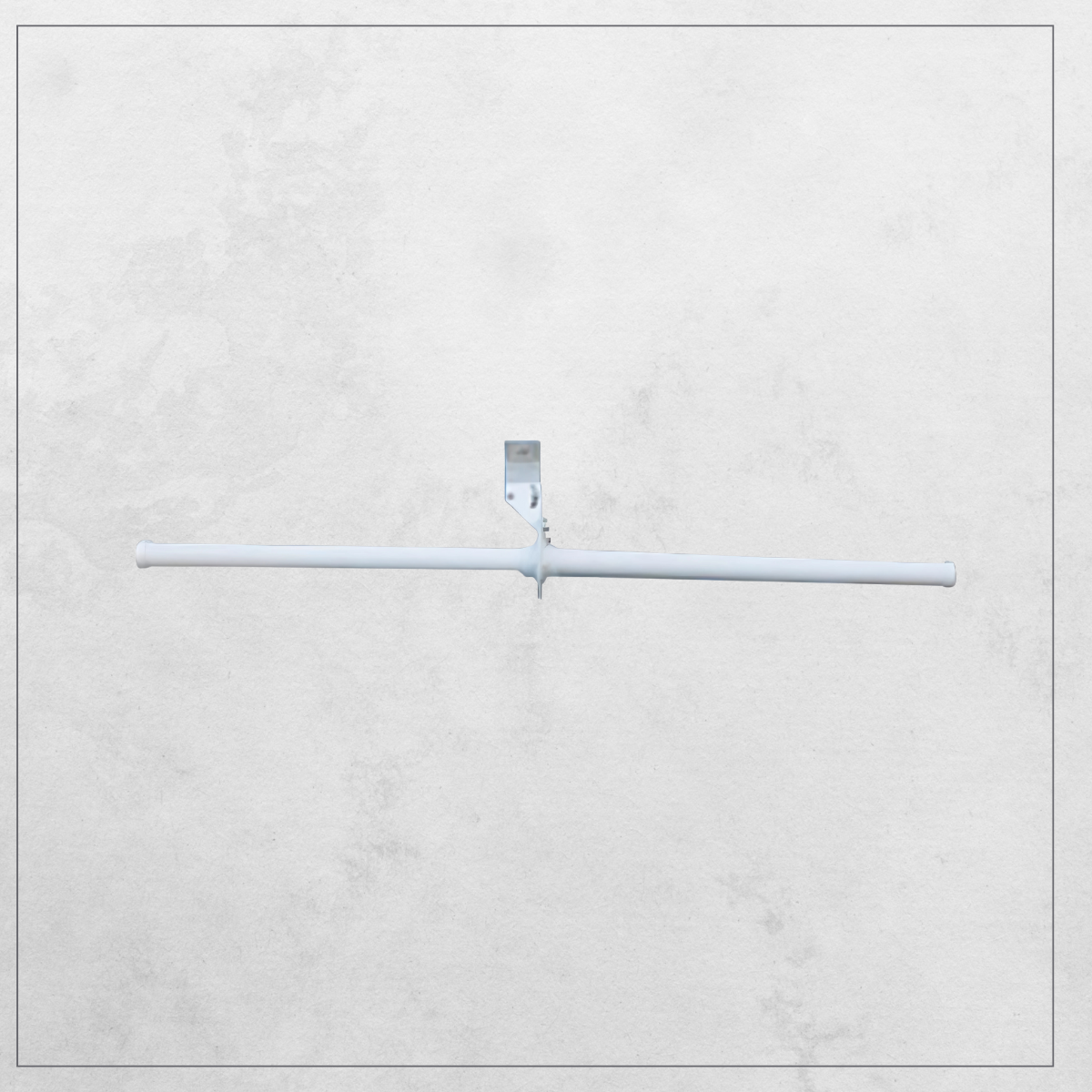

BDH2024-ASP Bi-Directional Helical Antenna with Anti-Static Paint
The BDH2024-ASP Bi-Directional Helical Antenna (2.4-2.5 GHz, Wi-Fi) features anti-static protection and interference-resistant connectivity, ensuring secure wireless communication in underground mining, industrial automation, and IIoT applications.
| GENERAL | |
| Antenna Pattern: | |
| Antenna Type: | |
| Radome Finish: | |
| Radome Material: |
| ELECTRICAL | |
| Frequency (MHz): | |
| Polarization: | |
| HPBW (°): | |
| Impedance (Ohm): | |
| VSWR (Max): | |
| Gain (dBi): | |
| Axial Ratio (dB): | |
| Front/Back Ratio: | |
| Isolation (dB): | |
| Max Input Power (W): | |
| Connector Type: | |
| Number of Connectors: | |
| MECHANICAL | |
| Antenna Length (in): | |
| Top Section Length (in): | |
| Bottom Section Length (in): | |
| Antenna Weight (lbs): | |
| Top Section Weight (lbs): | |
| Bottom Section Weight (lbs): | |
| Number of Elements: | |
| Length of Longest Element (in): | |
| Reflector Dimensions (in): | |
| Radome Diameter (in): | |
| Ground Plane Diameter (in): | |
| Bulkhead Base Diameter (in): | |
| Helical Diameter (in): |
| ENVIROMENTAL | |
| Operating Temperature (F): | |
| Wind Area (ft²): | |
| Wind Area With ½” Ice (ft²): | |
| Wind Load ft-lbs: | |
| Wind Load With ½” Ice ft-lbs: | |
| Thrust No Ice (ice lbs): | |
| Thrust With ½” Ice (ice lbs): | |
| Rated Wind Velocity (mph): | |
| Rated Wind Velocity With ½” Ice (mph): | |
| Bend Moment (ft-lbs): | |
| Survival Rating (mph): | |
| Azimuth (°): | |
| Elevation (°): |
| MOUNTING | |
| Mast OD (in): | |
| Mounting OD (in): | |
| Mount Type: | |
| Mount Height (in): | |
| Mount Weight (lbs): |
All model variants feature identical electrical, mechanical, and environmental specifications. Selection depends on required polarization, color, and optional accessories.
| MODEL VARIANTS | |||
| Model# | Polarization | Color | Accessories |
| BDH2024-W | RHCP or LHCP | Standard White | – |
| BDH2024-ASP | RHCP | Anti-Static Paint White | – |
| BDH2024-ASP-LH | LHCP | Anti-Static Paint White | – |
Description
The BDH2024-ASP is a high-performance, bi-directional helical antenna, designed for Wi-Fi communication within the 2.4-2.5 GHz frequency band. Engineered for industrial and harsh environments, this antenna features anti-static paint, preventing electrostatic discharge (ESD) buildup, making it ideal for underground mining, tunnels, and hazardous work sites.
Its bi-directional radiation pattern extends signal reach in two opposing directions, optimizing wireless communication in confined spaces such as tunnels, elevator shafts, and industrial automation systems. The circularly polarized helical design enhances signal clarity and reduces interference, ensuring stable and reliable performance in RF-challenging environments.
Built for rugged durability, the BDH2024-ASP is constructed to withstand harsh conditions, making it a trusted solution for IIoT networks, machine conditioning, and mission-critical industrial wireless applications.
